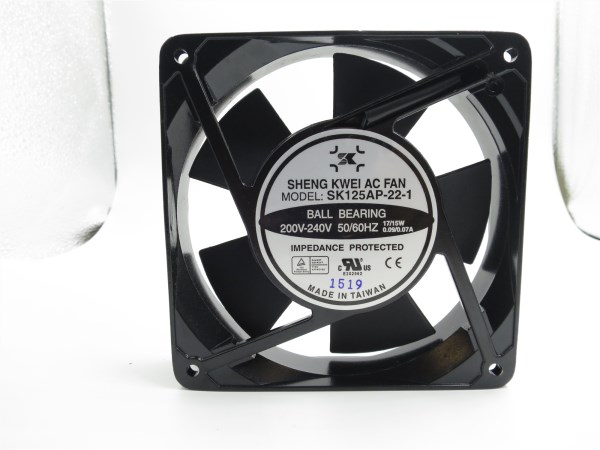

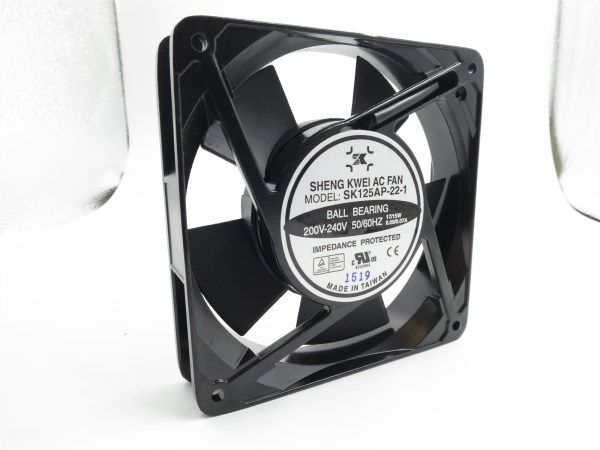

SK125AP-22-1原装台湾神逵SHENGKWEI 变频器散热风扇UPS电源风扇

品牌/Brand:台湾神逵 SHENGKWEI
型 號/ Model:SK125AP-22-1
尺寸/Size:120Χ120Χ25mm
安 規 Safety Std.: UL, CUL, TUV, CE, RoHS
電 壓 Voltage (V):230
頻 率 Freq. (Hz):50/60
電 流 Current (A):0.09/0.07
瓦 特 Power (W):17/15
轉 速 Speed (RPM):2650/3000
風 量 Air Flow ( 9 3/min/CFM): 60/70
噪 音 Noise (dB):44/48
马达/Motor : 阻抗保护或热保护 Shaded pole, impedance protected or thermally protected
外殼 Housing / frame：黑色铝框（AP) 铝框振动研磨（AN) Die-cast aluminum, Painted black (AP) or Plated (AN)

風葉 Impeller:热塑性 UL 84v_0 Glass reinforced thermoplastic, UL 94V-0

軸承/ Bearing: 双滚珠轴承 Two-ball bearing
接電方式 Connecting: 出线或端子 T-Terminal push-on type or W-Lead wire type

耐壓 Dielectric Strength:50/60HZ 1500VAC每分钟 1 min. at 1,500VAC, 50/60H

溫度範圍 Operating Temp: Ambient -20℃~+70℃

壽命 Life Expectancy:25度为6万小时，65度为4万小时 60,000 hours at 25℃ 40,000 hours at 65℃

净重Net Weight ：1.8 kg (3.97 pounds)
檢定 Safety Approvals:UL, CUL, TUV, CE, RoHS

l  SK92AP-11-1     SK92AP-11-2     SK92AP-11-3    SK92AP-22-1  SK92AP-22-1 SK109AP-11-1    SK109AP-11-2      SK109AP-11-3    SK109AP-22-1   SK109AP-22-2      SK109AP-22-3      SK125AP-11-1        SK125AP-11-2   SK125AP-11-3    SK125AP-22-1        SK125AP-22-2    SK125AP-22-3   SK127AP-11-1    SK127AP-22-1      SK160AP-11-1   SK160AP-22-1    SK162AP-11-1    SK162AP-11-2

SK162AP-11-3     SK162AP-22-1    SK162AP-22-2   SK162AP-22-3   SK165AP-11-1

SK165AP-22-1    SK172AP-11-1    SK172AP-11-2   SK172AP-11-3    SK172AP-22-1

SK172AP-22-2    SK172AP-22-3    SK176AP-11-1  SK176AP-22-1    SK180AP-11-1

SK180AP-22-1    SK205AP-11-1   SK205AP-22-1   SK254AP-11-1   SK254AP-11-2

SK254AP-22- 1   SK254AP-22-2   SK280AP-11-1   SK280AP-11-2   SK280AP-22-1

SK280AP-22-2    SK825AP-11-1   SK825AP-11-2   SK825AP-11-3   SK825AP-22-1

SK825AP-22-2   SK838AP-11-1   SK838AP-11-2    SK838AP-22-1   SK838AP-22-2

SK838AP-22-3   SK938AP-11-1   SK938AP-11-2 SK938AP-11-3 SK938AP-22-1 SK938AP-22-2
